Overview​

This service contains code to deploy a Redis Cluster using Amazon ElastiCache. The cluster is managed by AWS and automatically handles standby failover, read replicas, backups, patching, and encryption.

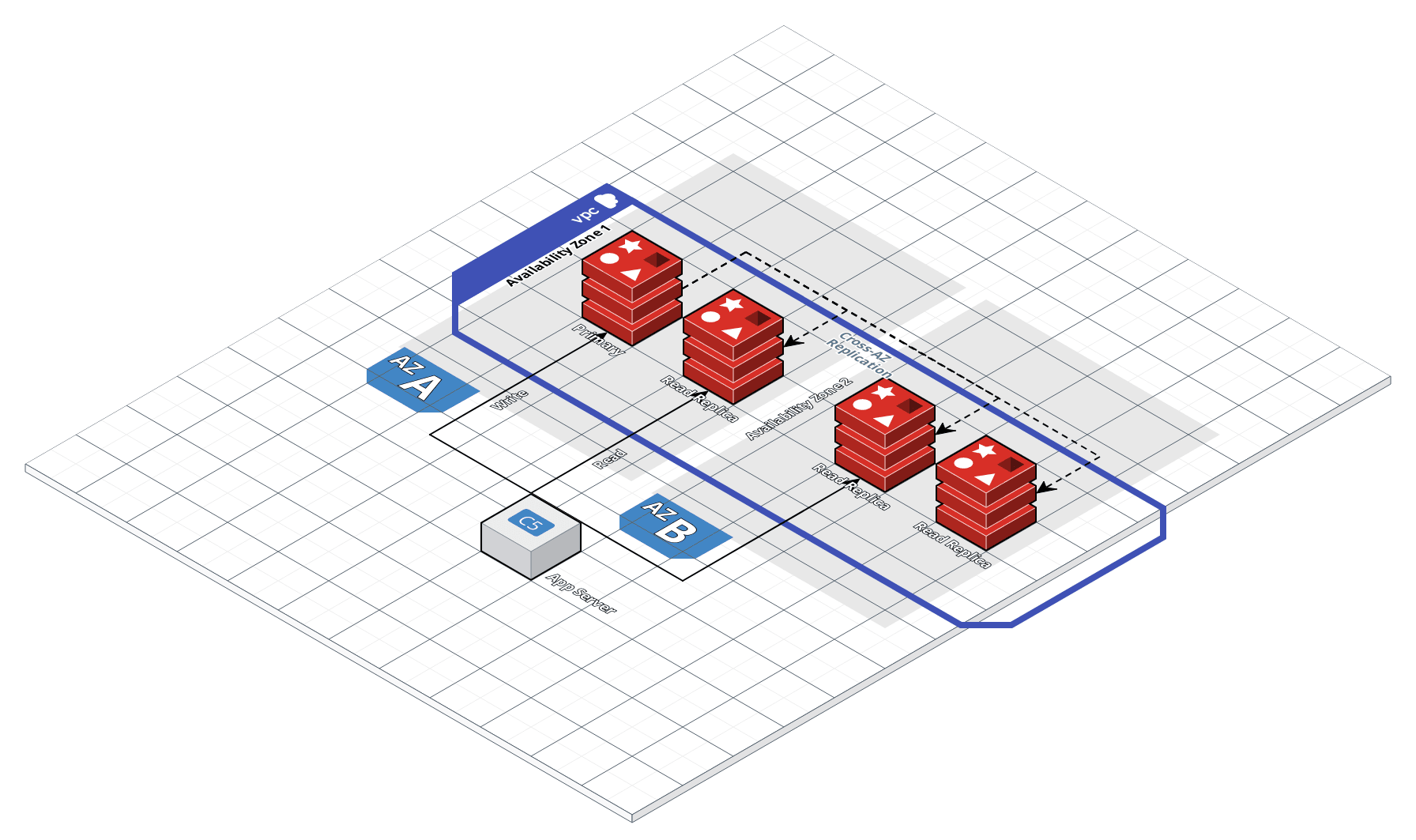

ElastiCache for Redis architectureElastiCache for Redis architecture

Features​

  • Deploy a fully-managed Redis cluster
  • Automatic failover to a standby in another availability zone
  • Read replicas
  • Automatic nightly snapshots
  • Automatic cross account snapshots
  • Automatic scaling of storage
  • CloudWatch Alarms for alerting when CPU, memory, and disk metrics exceed certain thresholds
  • Integrate with Kubernetes Service Discovery

Learn​

note

This repo is a part of the Gruntwork Service Catalog, a collection of reusable, battle-tested, production ready infrastructure code. If you’ve never used the Service Catalog before, make sure to read How to use the Gruntwork Service Catalog!

Deploy​

Non-production deployment (quick start for learning)​

If you just want to try this repo out for experimenting and learning, check out the following resources:

  • examples/for-learning-and-testing folder: The examples/for-learning-and-testing folder contains standalone sample code optimized for learning, experimenting, and testing (but not direct production usage).

Production deployment​

If you want to deploy this repo in production, check out the following resources:

Reference​

  • alarms_sns_topic_arns — The ARNs of SNS topics where CloudWatch alarms (e.g., for CPU, memory, and disk space usage) should send notifications.
  • apply_immediately — Specifies whether any modifications are applied immediately, or during the next maintenance window.
  • enable_automatic_failover — Indicates whether Multi-AZ is enabled. When Multi-AZ is enabled, a read-only replica is automatically promoted to a read-write primary cluster if the existing primary cluster fails. If you specify true, you must specify a value greater than 1 for replication_group_size.
  • enable_cloudwatch_alarms — Set to true to enable several basic CloudWatch alarms around CPU usage, memory usage, and disk space usage. If set to true, make sure to specify SNS topics to send notifications to using alarms_sns_topic_arn.
  • enable_multi_az — Indicates whether Multi-AZ is enabled. When Multi-AZ is enabled, a read-only replica is automatically promoted to a read-write primary cluster if the existing primary cluster fails. If you specify true, you must specify a value greater than 1 for replication_group_size.
  • instance_type — The compute and memory capacity of the nodes (e.g. cache.m4.large).
  • maintenance_window — Specifies the weekly time range for when maintenance on the cache cluster is performed (e.g. sun:05:00-sun:09:00). The format is ddd:hh24:mi-ddd:hh24:mi (24H Clock UTC). The minimum maintenance window is a 60 minute period.
  • name — The name used to namespace all resources created by these templates, including the ElastiCache cluster itself (e.g. rediscache). Must be unique in this region. Must be a lowercase string.
  • parameter_group_name — Name of the parameter group to associate with this cache cluster. This can be used to configure custom settings for the cluster.
  • port — The port number on which each of the cache nodes will accept connections (e.g. 6379).
  • replication_group_size — The total number of nodes in the Redis Replication Group. E.g. 1 represents just the primary node, 2 represents the primary plus a single Read Replica.
  • snapshot_retention_limit — The number of days for which ElastiCache will retain automatic cache cluster snapshots before deleting them. Set to 0 to disable snapshots.
  • snapshot_window — The daily time range during which automated backups are created (e.g. 04:00-09:00). Time zone is UTC. Performance may be degraded while a backup runs. Set to empty string to disable snapshots.
  • subnet_ids — The list of IDs of the subnets in which to deploy the ElasticCache instances. The list must only contain subnets in vpc_id.
  • tags — A set of tags to set for the ElastiCache Replication Group.
  • vpc_id — The ID of the VPC in which to deploy RDS.
